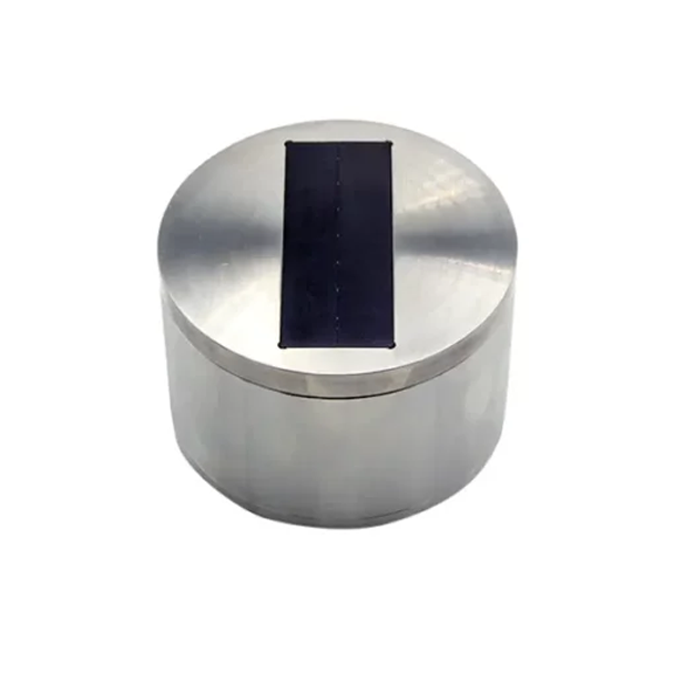

The SONO-Vario Xtrem is suitable for measuring sand and gravel, as well as highly abrasive materials such as coarse gravel or grit. The replaceable probe head is made of hardened steel with a rectangular window made of special ceramic.
| Specification | |
| Temperature range | 0°C ... 70°C |
| Power supply | +12V to +24V DC, approx. 3W |
| Special conditions | 0°C to +120°C in high temperature version |
| Signal output | 2 x analogue output 0(4)...20mA Output 1: Humidity in % Output 2: Temperature or optionally conductivity or standard deviation |
| Interfaces | RS485 or IMP bus |
| Sensor dimensions | Ø108 mm x 71 mm (without plug) |
| Weight | 2,46 kg |
| IP protection class | IP67 |
