Non-contact temperature sensor

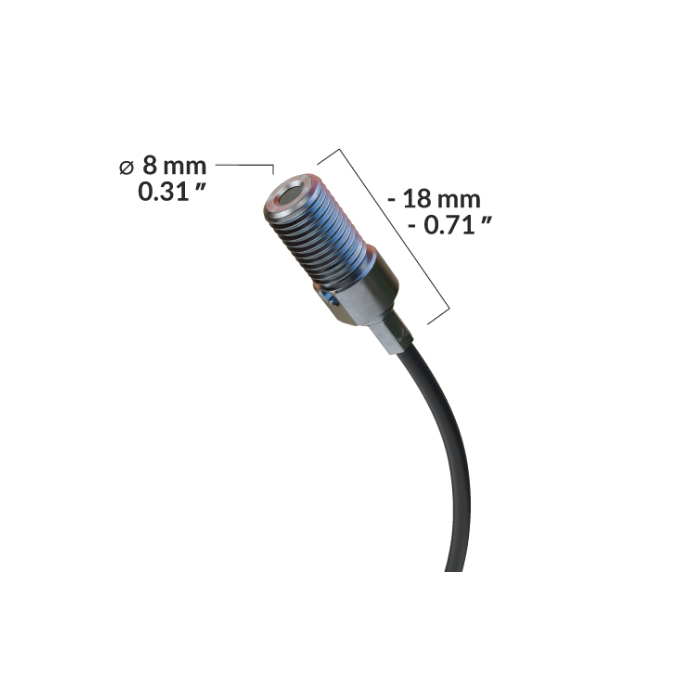

Small size sensor head (18 mm)
Output 0-5V, 0-10V, 4-20mA, UART/RS232
Repeatability error < 0,1°C (0.18°F)
Interchangeability error ± 0,3°C (0.54°F)
Resolution 0,005°C (0.01°F)
Air purge jacket as option
The ACE is our most versatile and flexible model, combining small size, high performance, customizability and competitive pricing all in one sensor family. The proprietary calibration procedure, combined with the sophisticated embedded software, allow for very high performance levels. Each sensor can be adjusted to customer requirements. This model has an 87° Field of View and digital (UART) output that can easily be converted into various other protocols. Airpurge jackets are available as accessories
| Temperature range | |
| Target temp | 0°C to 250°C (32°F to 482°F) |
| Field of view | 87° |
| Output signal | Digital (UART) |
| Ambient temp | 100°C (212°F) |
