Output 0-5V, 0-10V, 4-20mA (scalable)
Non-contact
Repeatability error 0,1% full scale
Interchangeability ±1,5% full scale
Resolution approx. 0,1°C (0.2°F)
Small size sensor

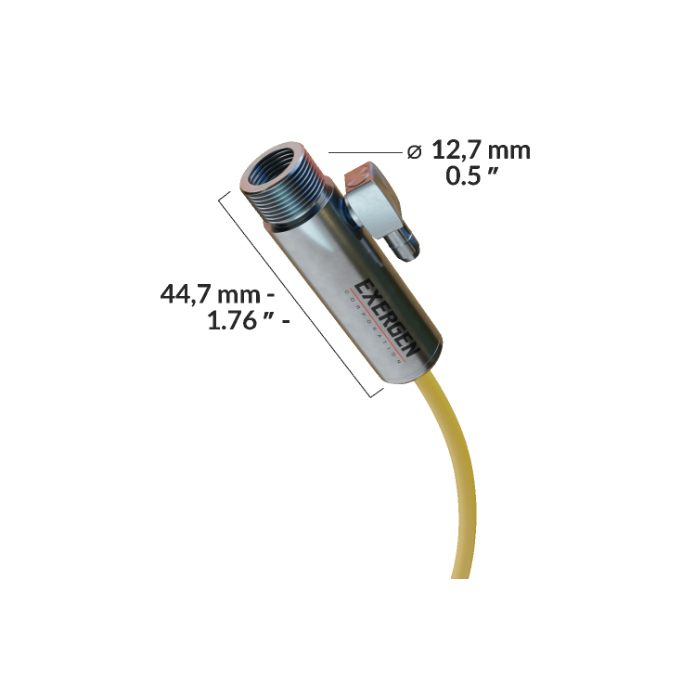

The AutoSmart 3X is the IRt/c.3X connected to the AutoSmart transmitter for analog output. The IRt/c.3X is one of our most popular sensors. It has a specialized detector with high sensitivity, operating across a broad temperature range up to 250°C. Target measurement is possible as low as-30°C, in environments as cold as -50°C. With its built-in airpurge it can be used in harsh environments and has a proven track record in challenging applications. Examples are: heavy industry, oil and gas, mining, transport, drying and curing.
| Temperature range | |
| Target temp | -30°C to 250°C (-22°F to 482°F) |
| Field of view | 17° |
| Output signal | 4-20mA or 0-10V (scalable) |
| Ambient temp | 120°C (248°F) with airpurge |
