Non-contact temperature sensor

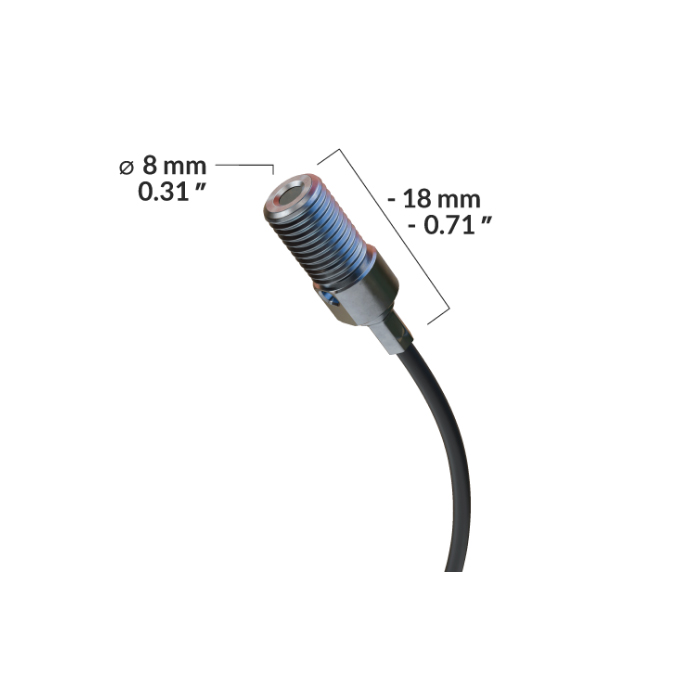

Small size sensor head (18 mm)
Output 0-5V, 0-10V, 4-20mA, UART/RS232
Repeatability error < 0,1°C (0.18°F)
Interchangeability error ± 0,3°C (0.54°F)
Resolution 0,005°C (0.01°F)
Air purge jacket as option
The ACE is our most versatile and flexible model, combining small size, high performance, flexibility and competitive pricing all in one sensor family. The proprietary calibration procedure, combined with the sophisticated embedded software allow for very high performance levels. Each sensor can be adjusted to customer demands.This model has 87° Field of view and analog 0-10V output. Custom temperature ranges and airpurge jackets available as accessory.
| Temperature range | |
| Target temp | 0°C to 250°C (32°F to 482°F) |
| Field of view | 87° |
| Output signal | 0-10V, 0-5V (scalable) |
| Ambient temp | 100°C (212°F) |
