Output 0-5V, 0-10V, 4-20mA (scalable)
Non-contact
Repeatability error 0,1% full scale
Interchangeability ±1,5% full scale
Resolution approx. 0,1°C (0.2°F)
Small size sensor

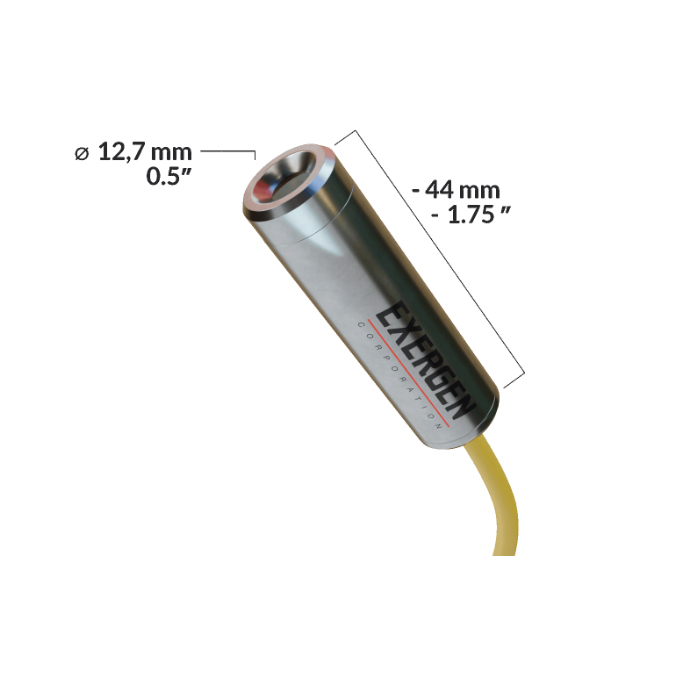

The AutoSmart IR is the IRt/c connected to the AutoSmart transmitter for analog output. The IRt/c is one of the most widely used models. It combines various features such as small size, ease-of-use and robustness. It has a huge install base with proved track record of reliability and accuracy. The stainless steel housing with shielded cable allow use in noisy areas. It has a broad range of applications, such as printing, drying, robotics, process automation and plastics. It also comes in a side view (SV) model.
| Temperature range | |
| Target temp | 0°C to 250°C (32°F to 482°F) |
| Field of view | 60° |
| Output signal | 4-20mA or 0-10V (scalable) |
| Ambient temp | 100°C (212°F) |
