Output 0-5V, 0-10V, 4-20mA
Non-contact
Repeatability error 0.1% full scale
Interchangeability ±1.5% full scale
Resolution approx. 0,1°C (0.2°F)
Small size sensor

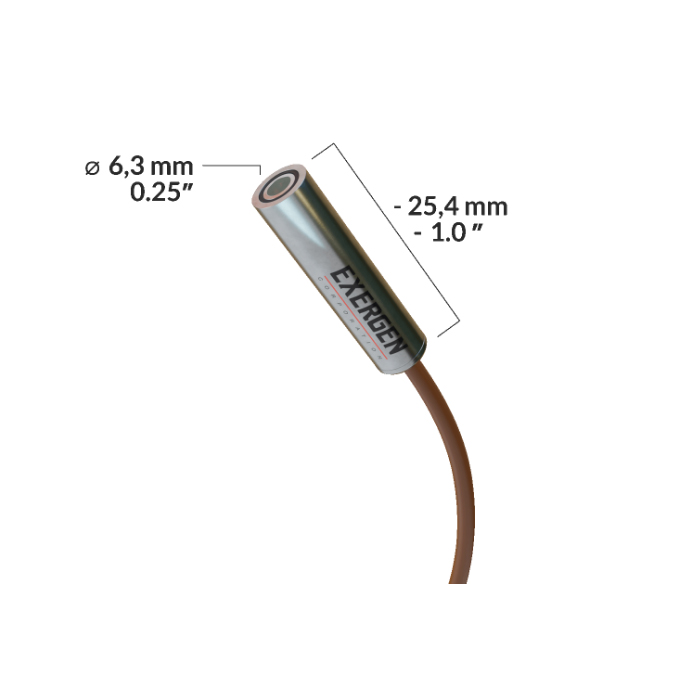

The AutoSmart M4 is a micro IRt/c.4 sensor connected to the AutoSmart transmitter for analog output. The micro IRt/c sensor is the smallest available in its class. This makes it an ideal candidate for use in confined spaces. This model has a narrow field of view of 14° to measure targets at larger distances. Suitable for temperatures above 100°C (212°F), it is popular in drying applications and process automation. Air purge jackets and mounting bra ckets are available as accessories.
| Temperature range | |
| Target temp | 100°C to 250°C (212°F to 482°F) |
| Field of view | 14° |
| Output signal | 4-20mA or 0-10V (scalable) |
| Ambient temp | 100°C (212°F) |
