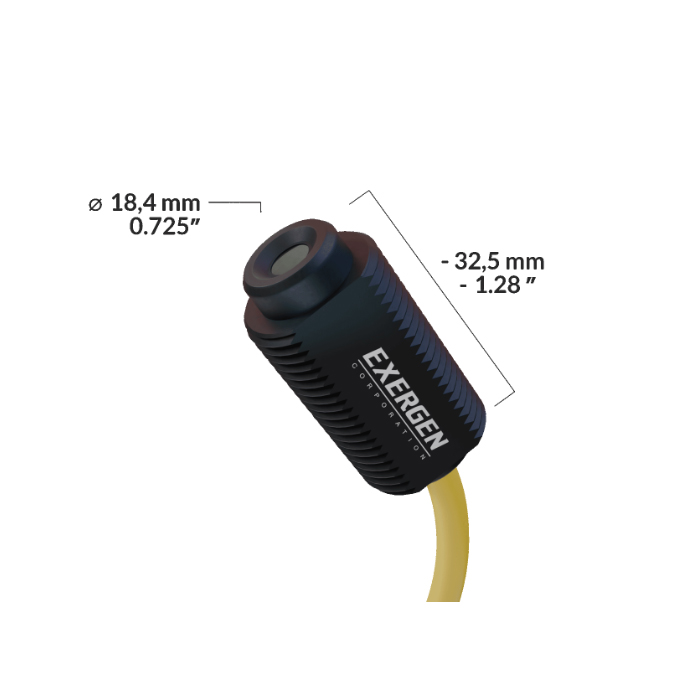

Infrared Thermocouple IRt/c
Non-contact
Self-powered
Intrinsically Safe
Repeatability 0,01°C (0.02°F)
Interchangeability ±1%
Resolution approx. 0,0001°C (0.0002°F)
Small Size
The IRt/c.01 is a highly versatile low-cost sensor, with a small size and threaded housing that makes it easy to mount and install. It is widely used in applications with low ambient temperatures (max 70°C) such as medical, agriculture and laminating. A special heat-balance version is available for non-invasive measurement of fluids.
| Temperature range | |
| Target temp | -45 to 290°C (-50 to 550°F) |
| Field of view | 60° |
| Output signal | K- or J-type thermocouple |
| Ambient temp | 70°C (160°F) |
