Complies with ASTM D7954.
For non-destructive moisture evaluation of roofs, EIFS, foam insulation systems & other building envelope applications.
To evaluate the extent of the moisture problem and help trace and pin-point its source.
Multi-mode functions allowing for depth penetration and sensitivity selection.
Fast and easy to operate giving instant clear readings.
"Hold" function facilitates ease of recording readings.
Lightweight, handheld and battery operated.
Telescopic handle (for use on roofs).
Telescopic handle (for use on roofs).

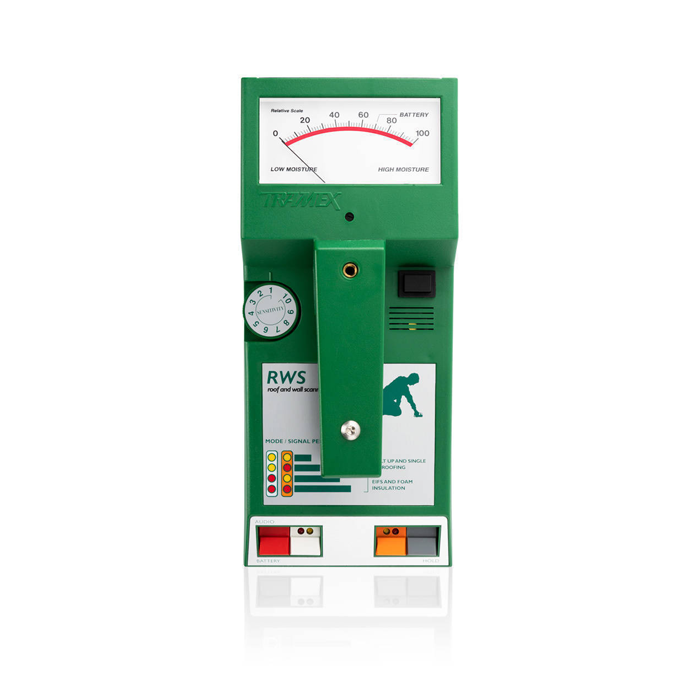

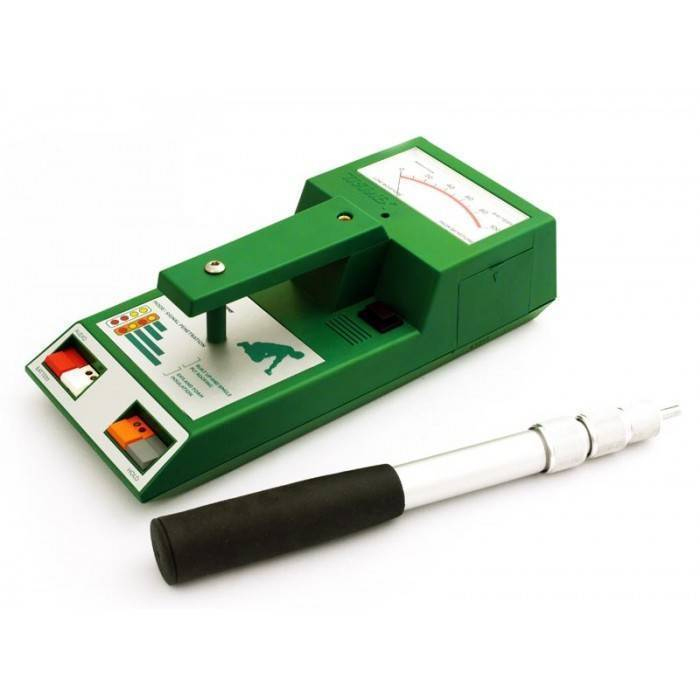

Pinless Moisture Scanner for Walls and Roofing Systems
The Tramex Roof and Wall Scanner is an instant, precise, multi-mode, non-destructive impedance scanner for evaluating moisture conditions in roofing (as per ASTM D7954), EIFS, foam insulation systems & other building envelope applications.
The RWS Multi-mode function allows for depth penetration and sensitivity selection and can help trace leaks and pin-point their source, which makes it a very beneficial moisture detector for walls and roofs.
| Specification | |
| Size: | 125mm x 275mm x 75mm (4.9" x 10.8" x 2.9") |
| Weight: | 853g (1.88lbs) |
| Construction: | ABS Body |
| Power: | 9 volt PP3 Battery (included) |
| Display: | Analog |
| Depth of penetration: | 100mm (4") |
| Sensitivity: |
Four Ranges: Roofing Mode with high and low sensitivity. EIFS / Foam Roof Insulation Mode with high and low sensitivity |
| Accessories: |
Leather carry case. Telescopic handle for use on roofs only. |
| Limitations: |
Some EPDM, Butyl rubber roofing and other conductive roofing. Hard Coat Stucco, wire lath or wire mesh reinforced finishes. |
