Infrared Thermocouple IRt/c
Non-contact
Self-powered
Intrinsically Safe
Repeatability 0,01°C (0.02°F)
Interchangeability ±1%
Resolution approx. 0,0003°C (0.0006°F)
Small Size

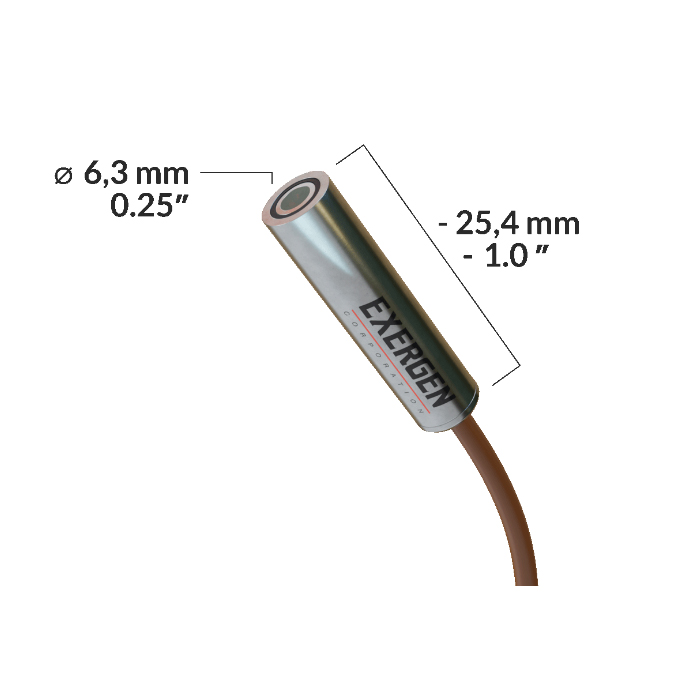

The Micro IRt/c sensor is the smallest available in its class, making it an ideal candidate for use in confined spaces. As a result of its small size, it is capable of measuring small spots (3mm diameter). It is used in various applications, including medical equipment, printing applications and robotics. Air purge jackets and mounting brackets are available as accessories.
| Temperature range | |
| Target temp | -18 to 524°C (0 to 975°F) |
| Field of view | 110 |
| Output signal | K-type thermocouple |
| Ambient temp | 100°C (212°F) |
