Infrared Thermocouple IRt/c
Non-contact
Self-powered
Intrinsically Safe
Repeatability 0,01°C (0.02°F)
Interchangeability ±1%
Resolution approx. 0,0001°C (0.0002°F)
Small Size

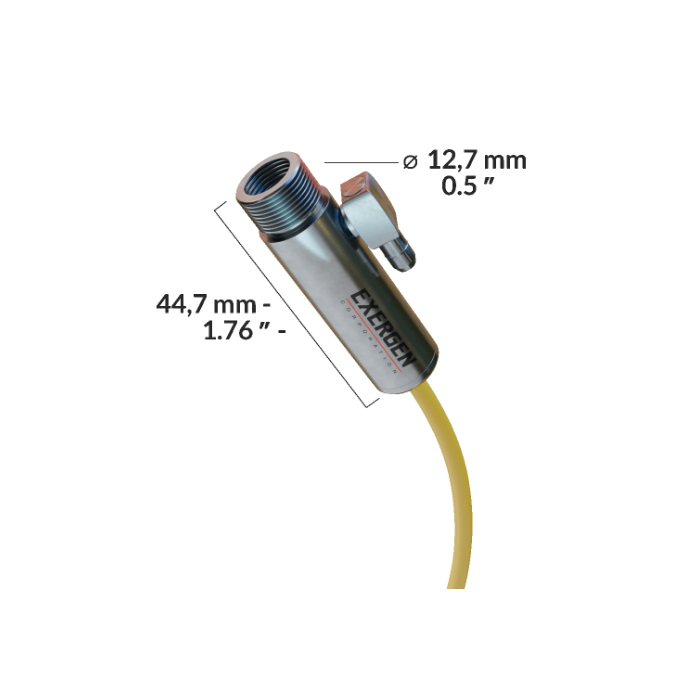

The IRt/c.3X is one of our most popular sensors. It has a specialized detector with high sensitivity, allowing it to be used across a broad temperature range, from -50°C right up to 650°C. With its built-in airpurge, it can be used in harsh environments and has a proven track record in challenging applications. Examples include heavy industry, oil and gas, mining, transport, drying and curing.
| Temperature range | |
| Target temp | -45 to 650°C (-50 to 1200°F) |
| Field of view | 17° |
| Output signal | K- or J-type thermocouple |
| Ambient temp | 120°C (248°F) |
