Infrared Thermocouple IRt/c
Non-contact
Self-powered
Intrinsically Safe
Repeatability 0,01°C (0.02°F)
Interchangeability ±1%
Resolution approx. 0,0001°C (0.0002°F)
Small Size

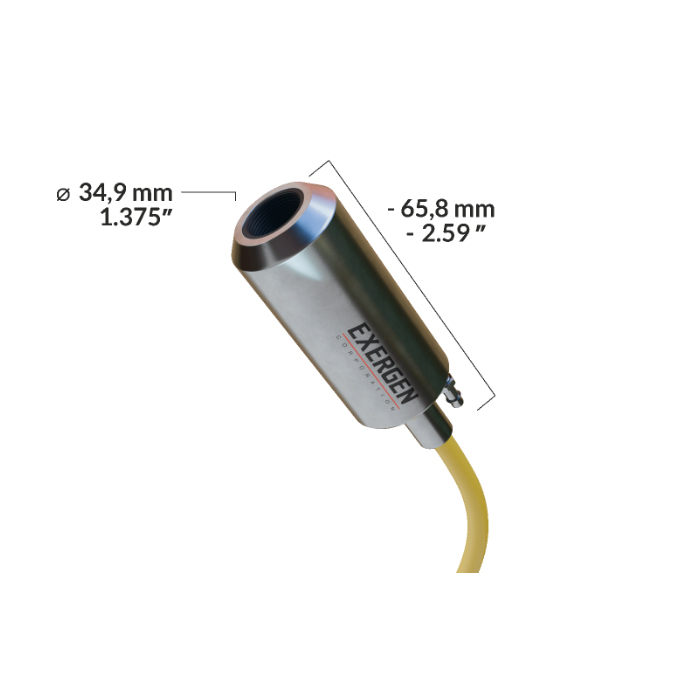

The IRt/c.5 is one of our bigger models, designed for consistent reliability under challenging conditions. With the 5:1 FOV it can be placed at a larger distance, ideal when target is very hot. The built-in airpurge cools the sensor in ambient temperatures up to 200°C. Uses include oil and gas applications (since the sensor is intrinsically safe), calender measurement, the transport sector, laundry equipment.
| Temperature range | |
| Target temp | -45 to 650°C (-50 to 1200°F) |
| Field of view | 11° |
| Output signal | K- or J-type thermocouple |
| Ambient temp | 200°C (400°F) with airpurge |
