Output 0-5V, 0-10V, 4-20mA (scalable)
Non-contact
Repeatability error 0,1% full scale
Interchangeability ±1,5% full scale
Resolution approx. 0,1°C (0.2°F)
Small size sensor

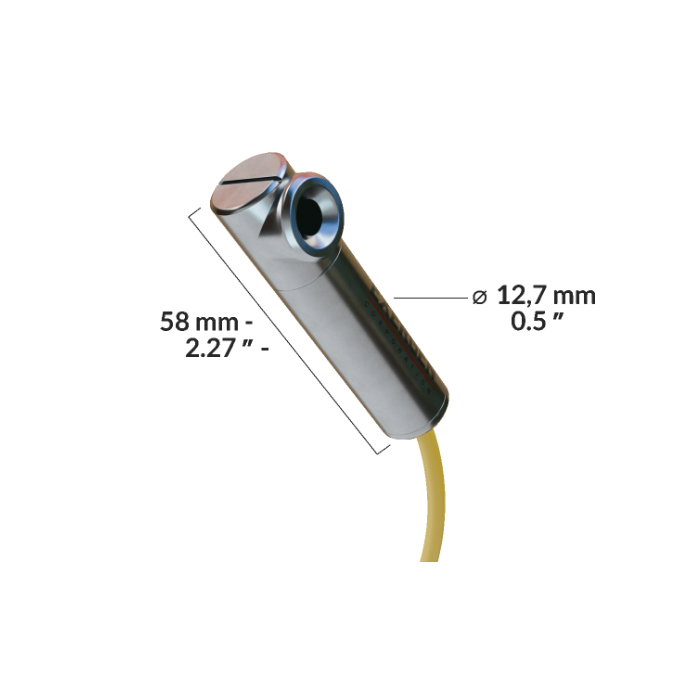

The AutoSmart SV is an IRt/c.SV (Side View) sensor connected to the AutoSmart transmitter for analog output. With the detector positioned at a 90° angle, it can be mounted parallel to the target in confined spaces, such as drying equipment and laminating. It has a proven track record of 20+ years and stands out in reliability
| Temperature range | |
| Target temp | 0°C to 250°C (32°F to 482°F) |
| Field of view | 60° |
| Output signal | 4-20mA or 0-10V (scalable) |
| Ambient temp | 100°C (212°F) |
