Output 0-5V, 0-10V, 4-20mA (scalable)
Non-contact
Repeatability error 0,1% full scale
Interchangeability ±1,5% full scale
Resolution approx. 0,1°C (0.2°F)
Small size sensor

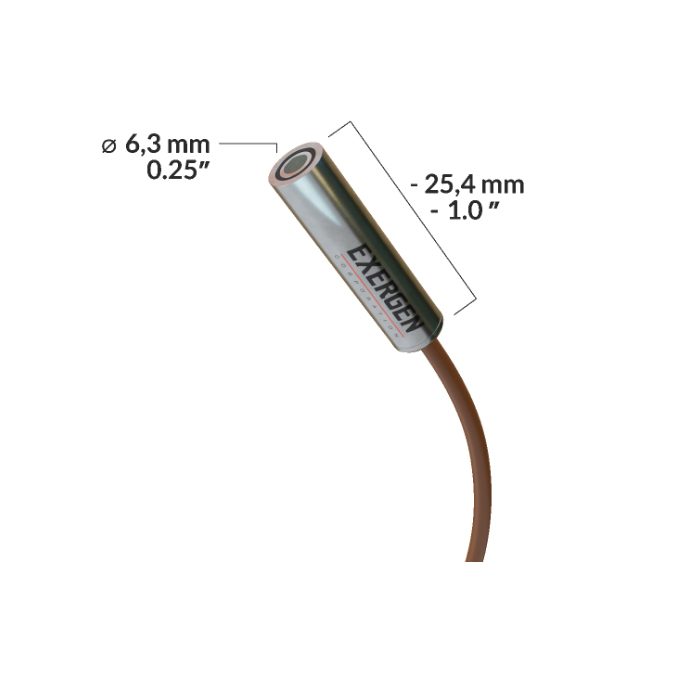

The AutoSmart M is a micro IRt/c sensor connected to our AutoSmart transmitter for analog output. The micro IRt/c sensor is the smallest available in its class. This makes it an ideal candidate for use in confined spaces. As a result of its small size, it is capable of measuring small spots (3mm diameter). Used in various applications, including medical equipment, printing applications and robotics. Air purge jackets and mounting brackets are available as accessories.
| Temperature range | |
| Target temp | 0°C to 250°C (32°F to 482°F) |
| Field of view | 110° |
| Output signal | 4-20mA or 0-10V (scalable) |
| Ambient temp | 100°C (212°F) |
