Infrared Thermocouple IRt/c
Non-contact
Self-powered
Intrinsically Safe
Repeatability 0,01°C (0.02°F)
Interchangeability ±1%
Resolution approx. 0,0003°C (0.0006°F)
Small Size

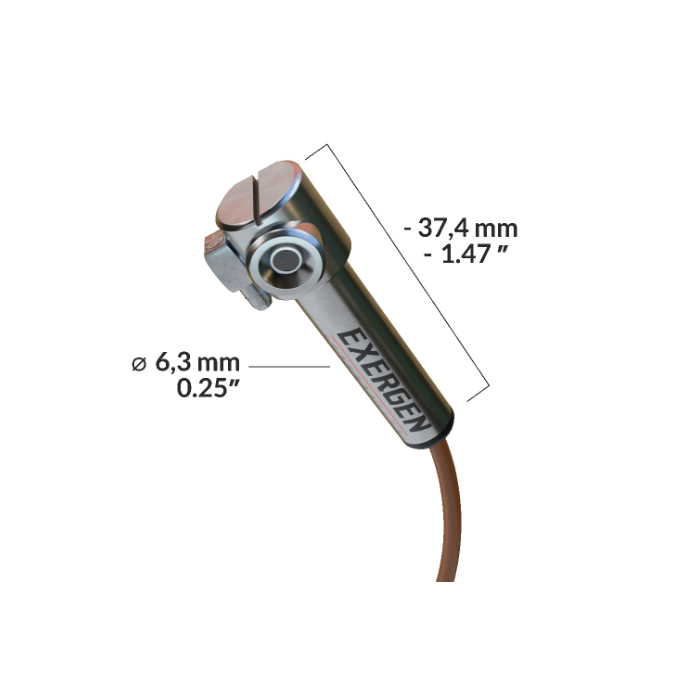

The Micro IRt/c.4SV is a unique sensor with some very specific advantages. As well as its very small size, it has a right-angle measurement for use in confined spaces, built-in airpurge for cooling and cleaning, and a very small spot. This model has a narrow field of view of 14° to measure targets at larger distances. Suitable for temperatures of above 200°C (392°F), the micro IRt/c.4SV is popular in applications in medical and mining. Mounting brackets are available as accessories.
| Temperature range | |
| Target temp | 200°C (392°F) to 625°C (1157°F) |
| Field of view | 14° |
| Output signal | K-type thermocouple |
| Ambient temp | 100°C (212°F) |
