Infrared Thermocouple IRt/c
Non-contact
Self-powered
Intrinsically Safe
Repeatability 0,01°C (0.02°F)
Interchangeability ±1%
Resolution approx. 0,0001°C (0.0002°F)
Small Size

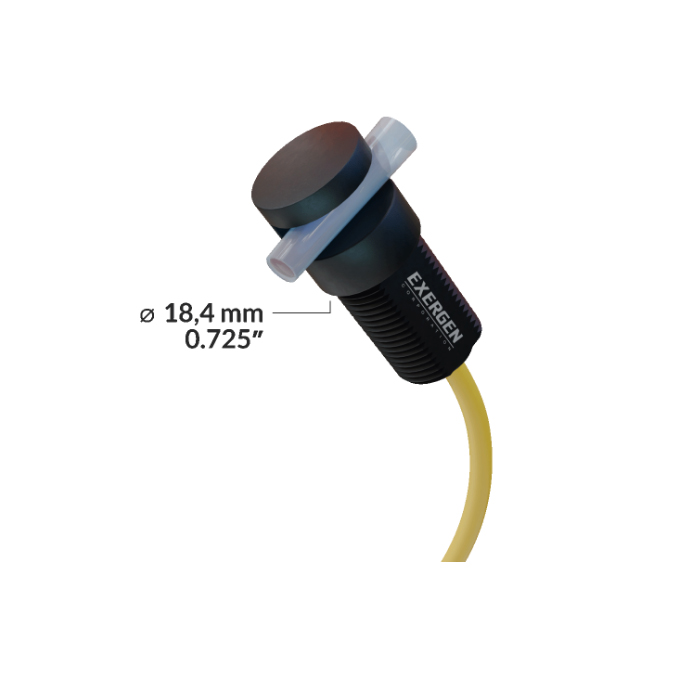

The IRt/c.01HB is a special version of the IRt/c.01. The HB stands for Heat Balance, allowing the sensor to be custom calibrated to measure fluid non-invasively through a tube or cartridge. A special clip is available to mount a medical grade 3/8"OD (9.5mm) tube on the sensor. Application use cases are mostly medical, and can also be used in cooling processes as well as the chemical industry.
| Temperature range | |
| Target temp | -45 to 290°C (-50 to 550°F) |
| Field of view | 60° |
| Output signal | K- or J-type thermocouple |
| Ambient temp | 70°C (160°F) |
