Output 0-5V, 0-10V, 4-20mA (scalable)
Non-contact
Repeatability error 0,1% full scale
Interchangeability ±1,5% full scale
Resolution approx. 0,1°C (0.2°F)
Small size sensor

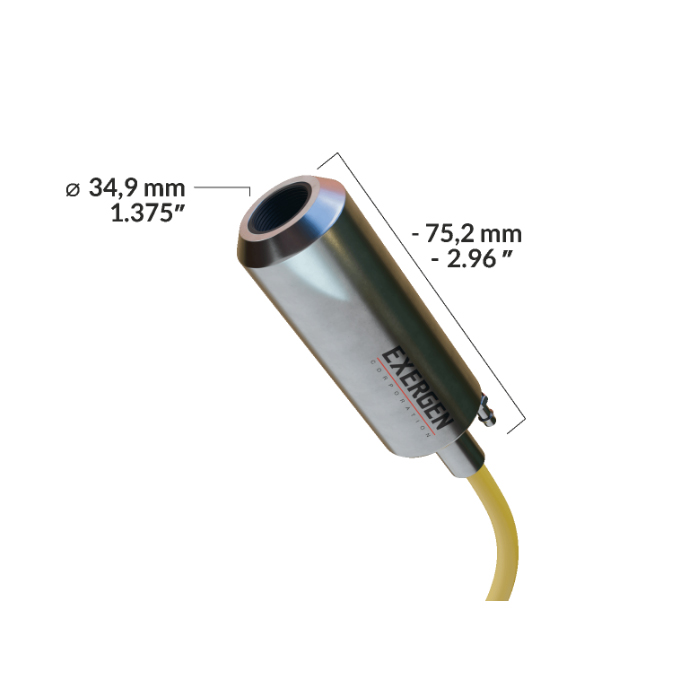

The AutoSmart 10 is the IRt/c.10 connected to the AutoSmart transmitter for analog output. The IRt/c.10 is our biggest precalibrated model, designed for enduring reliability under challenging conditions. With the 10:1 FOV, it can be placed at a larger distance, for example when target is very hot. The built-in airpurge cools the sensor in ambient temperatures up to 200°C. Application uses include oil and gas or chemical industries, laundry drying equipment, paint drying.
| Temperature range | |
| Target temp | 0°C to 250°C (32°F to 482°F) |
| Field of view | 16° |
| Output signal | 4-20mA or 0-10V (scalable) |
| Ambient temp | 200°C (400°F) with airpurge |
