Output 0-5V, 0-10V, 4-20mA
Non-contact
Repeatability error 0,1% full scale
Interchangeability ±1,5% full scale
Resolution approx. 0,1°C (0.2°F)
Small size sensor

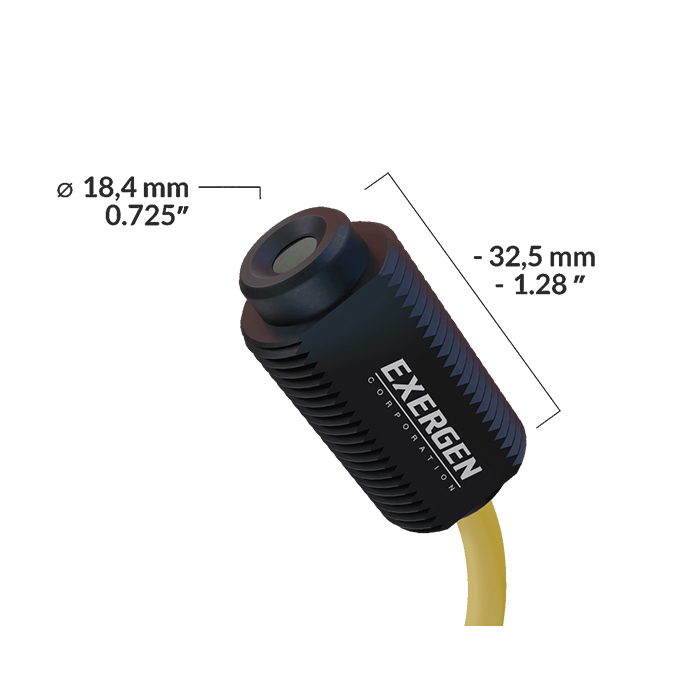

The AutoSmart 01 is an IRt/c.01 sensor connected to the AutoSmart transmitter for analog output. The IRt/c.01 is a highly versatile low-cost sensor, with a small size and threaded housing that makes it easy to mount and install. Popular in applications with low ambient temperatures (max 70°C) such as medical, agriculture and laminating. A special heat-balance version is available to measure fluids non-invasively.
| Temperature range | |
| Target temp | 0°C to 250°C (32°F to 482°F) |
| Field of view | 60° |
| Output signal | 4-20mA or 0-10V (scalable) |
| Ambient temp | 70°C (160°F) |
