Infrared Thermocouple IRt/c
Non-contact
Self Powered
Intrinsically Safe
Repeatability 0,01°C (0.02°F)
Interchangeability ±1%
Resolution approx. 0.0001°C
20:1 Field of View

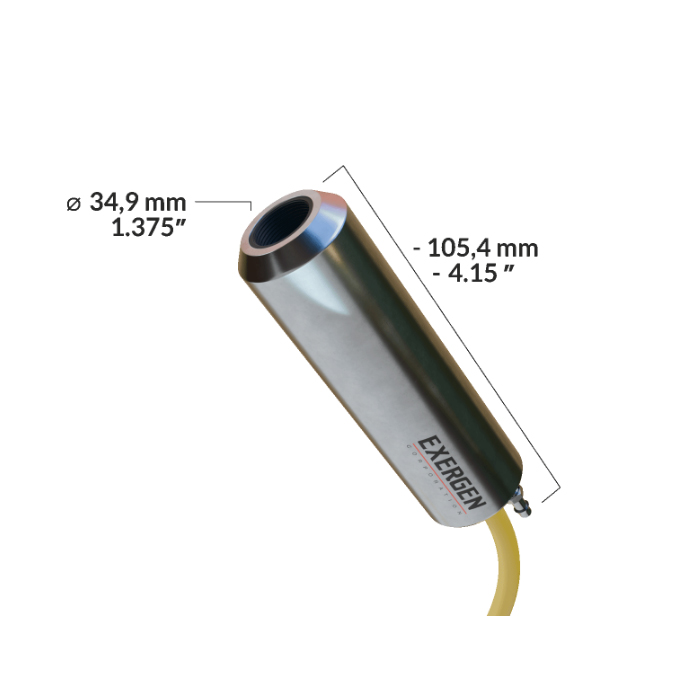

In contrast to our precalibrated sensors, the IRt/c.20A is an adjustable model. That means it can be custom calibrated to measure specific targets. Available in a HiE (high emissivity) version for non-metals, and a LoE (low emissivity) version for metals and reflective surfaces. These are generally easier to measure at higher temperatures (above 250°C). The IRt/c.20A has a 20:1 field of view and is mostly used in metallurgic applications (steel industry, furnaces).
| Temperature range | |
| Target temp | -45 to 1930°C (-50 to 3500°F) |
| Field of view | 3° |
| Output signal | K- or J-type thermocouple |
| Ambient temp | 200°C (400°F) with airpurge |
