Infrared Thermocouple IRt/c
Non-contact
Self-powered
Intrinsically Safe
Repeatability 0,01°C (0.02°F)
Interchangeability ±1%
Resolution approx. 0,0001°C (0.0002°F)
Small Size

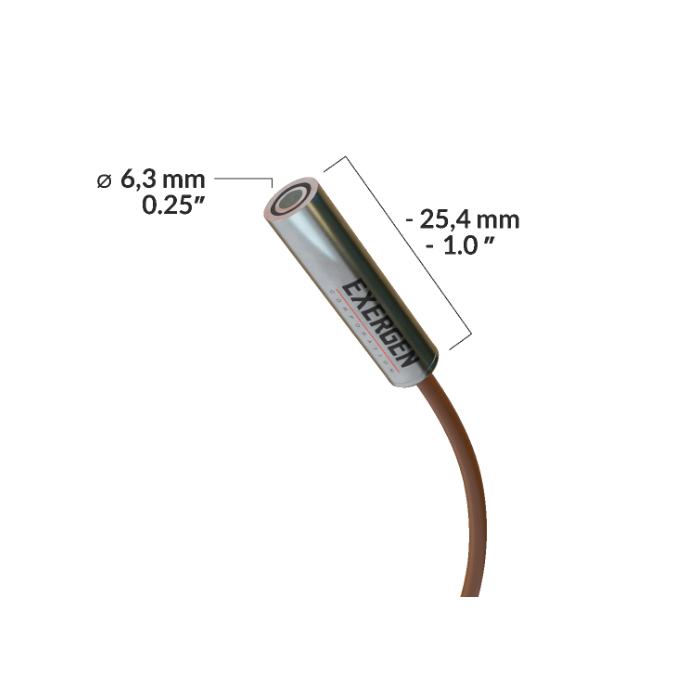

The Micro IRt/c.4 sensor is the smallest available in its class. This makes it an ideal candidate for use in confined spaces. This model has a narrow field of view of 14°, enabling it to measure targets at a larger distance. Suitable for temperatures of above 200°C (392°F), it is particularly suited to drying applications and process automation. Air purge jackets and mounting brackets are available as accessories.
| Temperature range | |
| Target temp | 200°C (392°F) to 625°C (1157°F) |
| Field of view | 14° |
| Output signal | K-type thermocouple |
| Ambient temp | 100°C (212°F) |
