Output 0-5V, 0-10V, 4-20mA (scalable)
Non-contact
Repeatability error 0,1% full scale
Interchangeability ±1,5% full scale
Resolution approx. 0,1°C (0.2°F)
Small size sensor

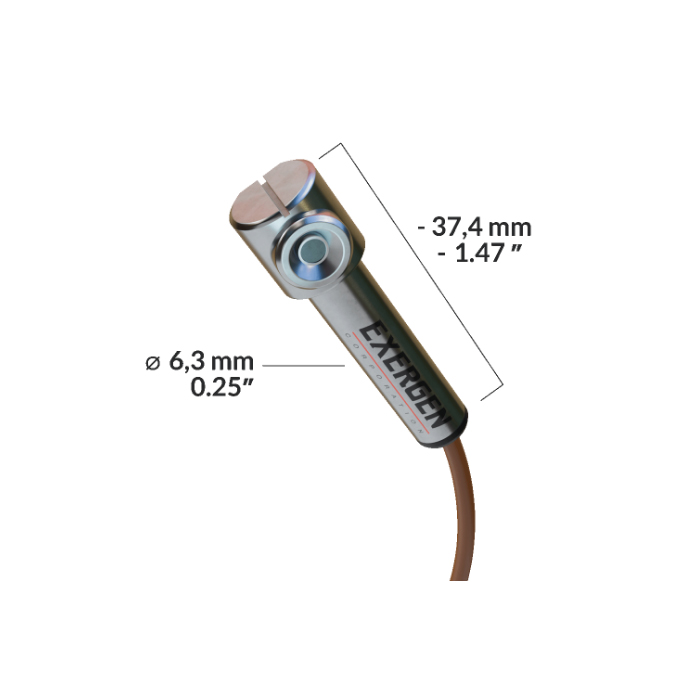

The AutoSmart SV is a micro IRt/c.SV (Side View) connected to the AutoSmart transmitter for analog output. The micro IRt/c.SV sensor is the smallest available in its class, a side view model that is unique and ideal for use in hard-to-reach places where a sensor can be placed parallel to the target. As a result of its small size, it is capable of measuring small spots (3mm diameter). Used in various applications, including medical equipment, printing applications and in solar energy. Mounting brackets are available as accessories.
| Temperature range | |
| Target temp | 0°C to 250°C (32°F to 482°F) |
| Field of view | 110° |
| Output signal | 4-20mA or 0-10V (scalable) |
| Ambient temp | 100°C (212°F) |
