Infrared Thermocouple IRt/c
Non-contact
Self-powered
Intrinsically Safe
Repeatability 0,01°C (0.02°F)
Interchangeability ±1%
Resolution approx. 0,0001°C (0.0002°F)
Small Size

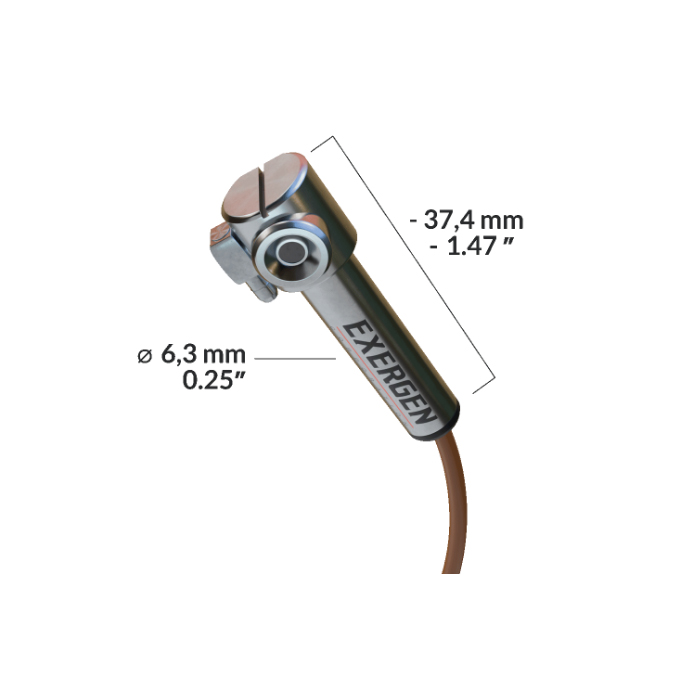

The Micro IRt/c.SV sensor is the smallest available in its class. This side view model is unique and is ideal for use in hard-to-reach places where it can be placed parallel to the target. As a result of its small size, this sensor can measure spots as small as 3mm diameter. It is used in various applications, including medical equipment, printing applications and solar energy. Mounting brackets are available as accessories.
| Temperature range | |
| Target temp | -18 to 524°C (0 to 975°F) |
| Field of view | 110° |
| Output signal | K-type thermocouple |
| Ambient temp | 100°C (212°F) |
