%MC dual depth measurement of wood
Comparative dual depth of drywall, roofing, plaster, tile and masonry
Dual depth comparative readings of surface and core moisture for eliminating influence of substrate on moisture testing of coverings
LED indicator Low/Med/High for all NDT scales
Built-in Hygrometer readings on permanent display
Built-in Surface Temperature Infrared Thermometer
Adjustable Specific Gravity for NDT wood readings
Baseline reference reading set point adjuster to compare to known dry / drying goal reading
With optional pin and relative humidity probes

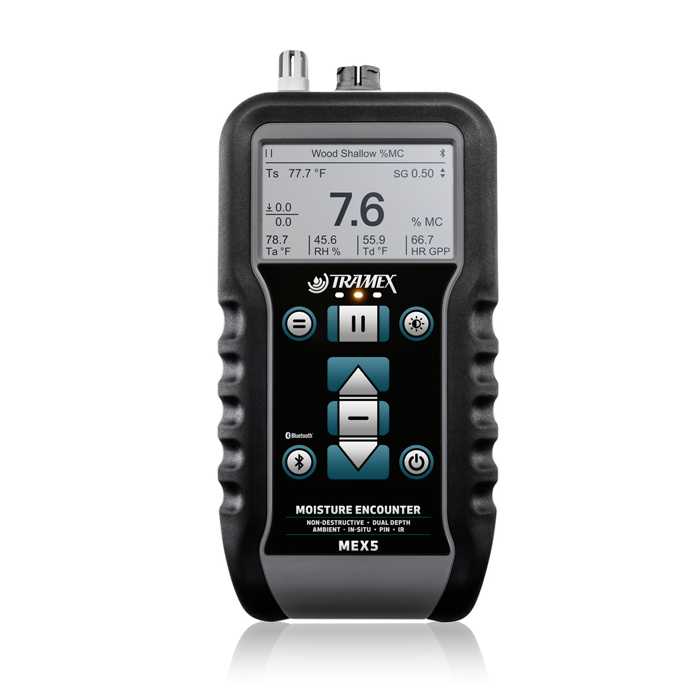

The Tramex Moisture Encounter MEX5 is a digital Dual-Depth, non-destructive moisture and humidity meter, ideal for surveying moisture and humidity conditions in building structures.
The MEX5 measures moisture content in wood and drywall and provides comparative readings in various building materials such as roofing, plaster, tile and masonry. It also features a built-in hygrometer for ambient conditions and psychrometric values, an Infrared Surface Thermometer and also incorporates optional external in-situ RH probes for in-situ equilibrium RH readings, as well as Pin probes for wood, drywall, and WME readings. These individual and collective features make the MEX5 an essential and indispensable asset for professionals in the building moisture inspection and restoration industry.
The MEX5 moisture meter features dual depth measuring range. Deep Depth penetration of up to 1¼" (30mm) and Shallow Depth penetration of up to ⅜" (9mm).
The dual depth readings of surface and core moisture can be compared to eliminate the influence of the substrate when testing coverings.
The pinless moisture meter measures moisture content % of wood from 0-30%. The meter can be expanded with the use of pin probes for wood, wood by-products and drywall as well as relative humidity sensor probes for evaluating ambient conditions.
All moisture and humidity readings can be visualised and Geotagged with the Tramex Meters App and turned into moisture maps, reports and charts for sharing.
| Specification | |
| Size: | 180mm x 85mm x 40mm (7.1" x 3.4" x 1.6") |
| Weight: | 290g (10.22oz) |
| Construction: | ABS Body |
| Power: | 2 x AALR6 ALKALINE (included) |
| Display: | Digital 58mm x 35mm (2.3" x 1.4") |
| Depth of penetration: | Shallow signal: up to 9mm (⅜”) Deep signal: up to 30mm (1¼") |
| Measuring range of MEX5 moisture meter | |
| NDT Moisture content for Wood: | 0 → 30% MC |
| NDT Comparative for Building Materials: | 0 → 100 |
| Pin % MC Wood: | 6 → approx 50% MC |
| Pin % MC Drywall: | 0 → 8.5% MC |
| Relative Humidity: | 0 → 99% |
| (with optional Hygro-i2 ® probe): | Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F |
