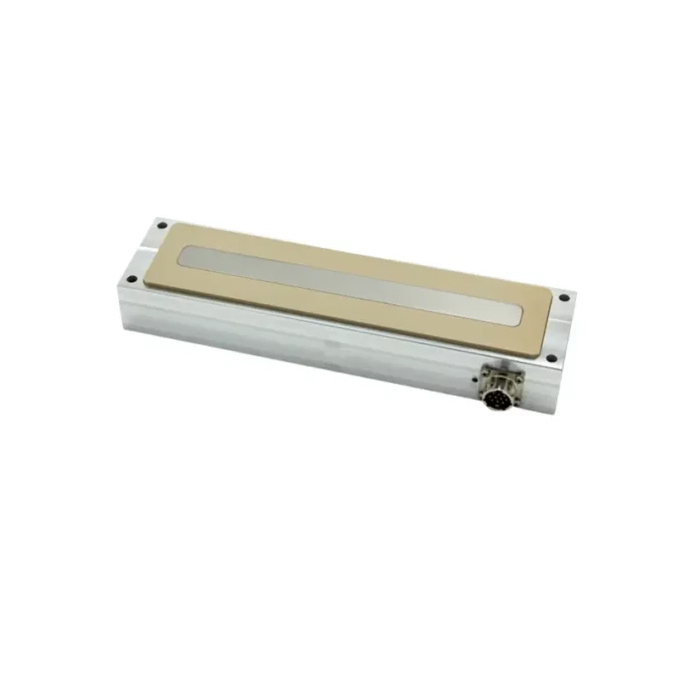

Large rectangular sensor for high-precision applications and for installation in container walls, along conveyor screws and pipelines or similar.
Sensor surface made of stainless steel (V4A) and PEEK.
Wood & low-density bulk materials.
| Temperature range | Temperature range |
| Temperature range | 0°C - 70°C |
| Power supply | +12V to +24V DC, approx. 3W |
| Special conditions | 0°C to +100°C for high-temperature version |
| Signal output | 2 x analog output 0(4)-20mA Output 1: Humidity in % Output 2: Temperature or optionally conductivity or standard deviation |
| Interfaces | RS485 or IMP bus |
| Sensor dimensions | 280 x 60 x 43 mm (length x width x height) |
| Weight | 1.3 kg |
| IP protection class | IP65 |
