Infrared Thermocouple IRt/c
Non-contact
Self-powered
Intrinsically Safe
Repeatability 0,01°C (0.02°F)
Interchangeability ±1%
Resolution approx. 0,0001°C (0.0002°F)
Small Size

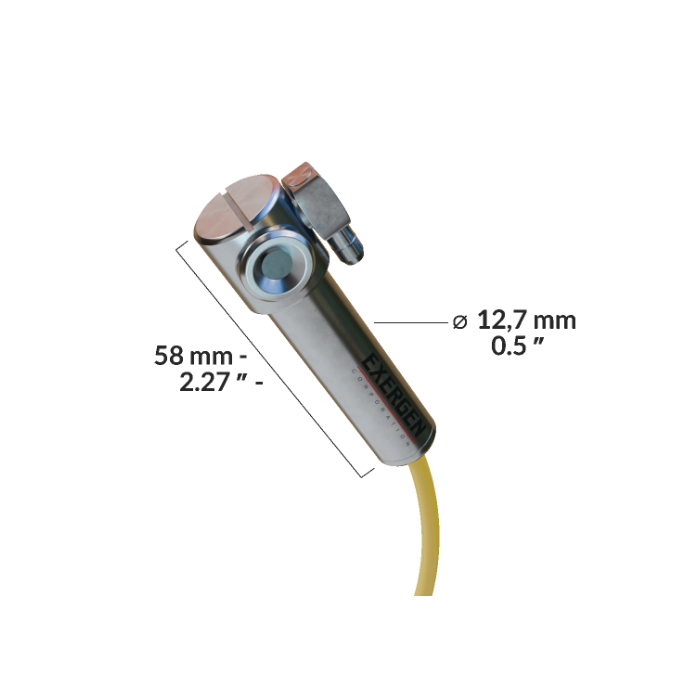

The IRt/c.3SV is the side view model of the IRt/c.3X, one of our most popular models. Strong design with built-in airpurge make it very robust for use in challenging, hard-to-reach places. It is highly accurate and reliable, even in challenging applications with high ambient temperatures and dust. Examples of applications include moisture measurement in paper mills, laundry drying, IR drying processes.
| Temperature range | |
| Target temp | -45 to 650°C (-50 to 1200°F) |
| Field of view | 17° |
| Output signal | K- or J-type thermocouple |
| Ambient temp | 120°C (248°F) with airpurge |
