SONO MIX - Moisture Sensors
SONO MIX - Moisture Sensors
Features

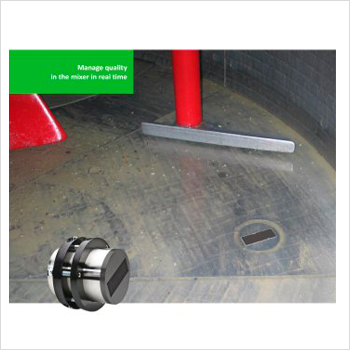

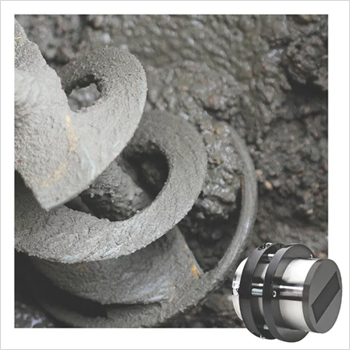

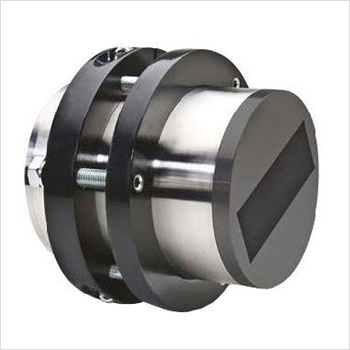

The toughest mixer probe for use in pan mixers, ring mixers, planetary mixers, and twin-shaft mixers. The replaceable probe head consists of steel and a solid carbide plate with a rectangular window made of a special ceramic.
Fresh Concrete Online.
| Temperature range | 0°C - +70°C |
| Power supply | +12V to +24V DC, approx. 3W |
| Special conditions | - |
| Signal output | 2 x analog output 0(4)-20mA Output 1: Humidity in % Output 2: Temperature or optionally conductivity or standard deviation |
| Interfaces | RS485 or IMP bus |
| Sensor dimensions | Ø108 mm x 135 mm (without plug) |
| Weight | 3.70 kg |
| IP protection class | IP67 |
