PICO 64 - Soil Sensors
PICO 64 - Soil Sensors

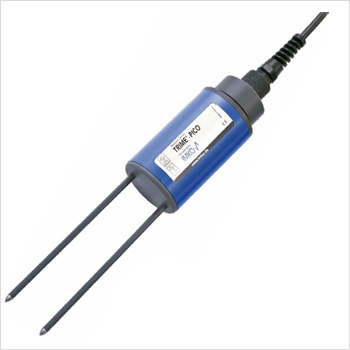

The intelligent and compact TRIME-PICO64/32 sensors are measurement devices for continuous and non-destructive determination of volumetric or gravimetric material moisture, material temperature and material conductivity. They are designed for stationary subterranean field use. A variety of installation options (greater depth, vertical or horizontal orientation) offer a wide range of applications.
TRIME-PICO64/32 systems require an external 7-24V/DC power supply. They are designed for con-nection to a data logger or a PC for monitoring and data logging purposes.
Features
The soil moisture probe for high-resolution and point-based measuring tasks.
| Temperature range | -15°C -50°C |
| Power supply | +7V to +24V DC |
| Special conditions | Optional probe rods in 100mm lengthh |
| Signal output | 2 x analog output 0-1V Output 1: Humidity in % Output 2: Temperature or optionally conductivity or standard deviation |
| Interfaces | RS485 or IMP bus |

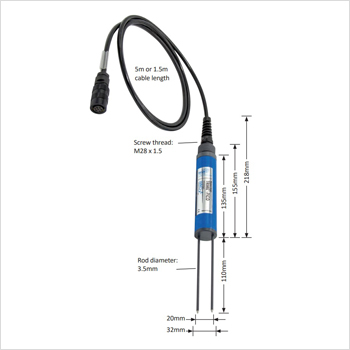

| Sensor dimensions | 155 x 36 mm (length x diameter) |
| Weight | - |
| IP protection class | IP68 |
