Output 0-5V, 0-10V, 4-20mA (scalable)
Non-contact
Repeatability error 0,1% full scale
Interchangeability ±1,5% full scale
Resolution approx. 0,1°C (0.2°F)
Small size sensor

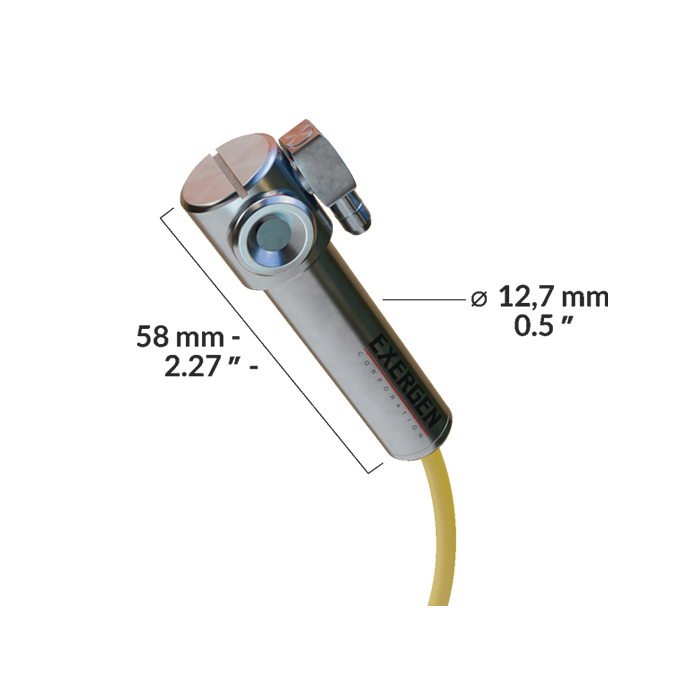

The AutoSmart 3SV is an IRt/c.3SV sensor connected to the AutoSmart transmitter for analog output. The IRt/c.3SV is the Side View model of the IRt/c.3X, one of our most popular models. Designed with built-in airpurge, making it very robust for use in challenging, hard-to-reach places. Highly accurate and reliable, even in challenging applications with high ambient temperatures and dust. Examples of applications include moisture measurement in paper mills, laundry drying, IR drying processes
| Temperature range | |
| Target temp | -30°C to 250°C (-22°F to 482°F) |
| Field of view | 17° |
| Output signal | 4-20mA or 0-10V (scalable) |
| Ambient temp | 120°C (248°F) with airpurge |
